| 产地 | 江苏 |
|---|---|
| 电源电压 | 380V |
| 结构类型 | 涡旋式 |
| 类型 | 水冷式冷水机 |
| 外形尺寸 | 1300mm*610mm*1445mm |
| 销售方式 | 直销 |
| 应用领域 | 电镀,食品,建筑,化工,工业,反应釜 |
| 整机功率 | 8.5KW |
| 整机重量 | 290kg |
| 制冷量 | 32.2KW |
| 执行质量标准 | 国标 |
| 贸易属性 | 外贸+内贸 |
| 发货期限 | 15天 |
| 品牌 | 携尔德 |
| 型号 | XED-10WD |
| 加工定制 | 是 |
| 出水温度范围 | 5℃/+45℃ |
1、产品概述：
1、product overview

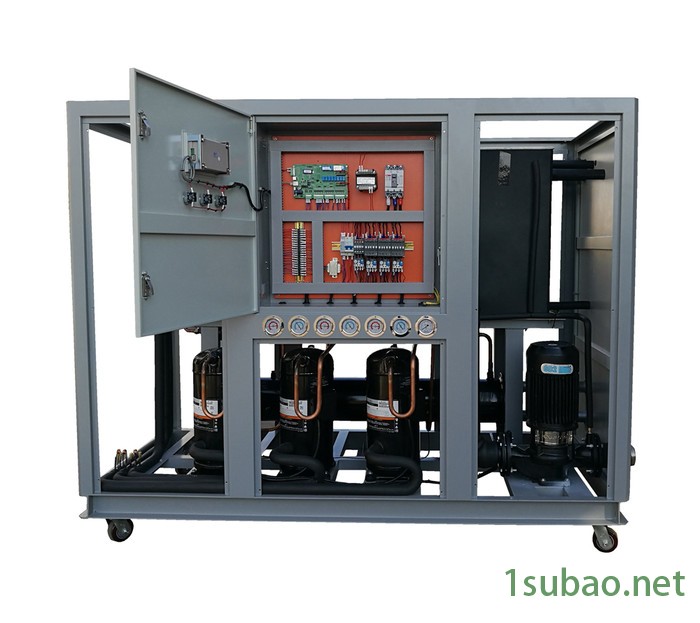

30KW水冷式冷水机组拥有2个全封闭涡旋压缩机，水冷式冷水机组外部必须配有冷却塔和水泵，用以抽取热水进行散热，使制冷过程能够循环进行。优点：结构简单，散热效果好，噪音小，同等大小制冷量能效比高于风冷式冷水机组。缺点：外部需配水塔和水池，不便移动。
The 30KW water-cooled chiller has two totally enclosed scroll compressors. The external of the water-cooled chiller must be equipped with cooling tower and water pump to extract hot water for cooling, so that the cooling process can be repeated.Advantages: simple structure, good heat dissipation effect, small noise, the same size cooling capacity energy efficiency ratio is higher than the air-cooled chiller.Disadvantages: external water distribution tower and pool, inconvenient to move.
2、产品参数：
2、Product Parameter
|
| XED-10WD | |
| Freezing capability | Kcal / KW | 27370 / 32.2 |
| Power source | V | 3∮ 380～380V- 50HZ（440V-60HZ，Can be customized） |
| Motor ipupt | KW | 8.42 |
| Electric current | A | 21.05 |
| Refrigerant | Kind | R407C、R404A、R134A（Can be customized） |
| FILLING QUANTIT（kg） | 5.6 | |
| Power of compressor | KW | 3.46*2 |
| Quantity of compressor |
| 2 |
| Cooling water flow rate m3/h | m3/h | 8.2 |
| Cooling water inlet and outlet pipe diameter | MM | 50 |
| Power of water pump | KW | 0.75 |
| Refrigerated water flow | m3/hr | 6 |
| Diameter of freezing water pipe | MM | 50 |
| Overall dimension | L（mm） | 1300 |
| W（mm） | 610 | |
| H（mm） | 1445 | |
| Weight of machine | kg | 290 |
3、产品细节描述
30KW水冷式冷水机组内部包含SUS304不锈钢保温水箱，水箱容积188L，适用于医疗设备冷却，注塑机冷却，模具冷却，30KW水冷式冷水机需要外接一台10T的冷却水塔，配一台流量不低于8m3/h的水泵。
3. Product deion
The 30KW water-cooled chiller contains a SUS304 stainless steel insulated water tank with a volume of 188L, which is suitable for medical equipment cooling, injection molding machine cooling and mold cooling. The 30KW water-cooled chiller needs an external 10T cooling water tower and a water pump with a flow rate of no less than 8m /h.
4、FAQ
问：这款机器有脚轮可以移动吗？
答：有轮子可以移动，随时可以推着走。
Q: does the machine have casters that can be moved?
Answer: have wheel can move, can push to walk at any time.
5、选型参数表
