| 品牌 : | 赛硕 | 型号 : | SS-HJ-01 |
| 用途 : | 补焊 | 电流 : | 直流 |
| 作用对象 : | 金属 | 作用原理 : | 脉冲 |
| 产品别名 : | 激光焊机 | 焦斑直径 : | 可调 |
| 激光焊接深度 : | 2MM | 激光器上下行程 : | X=300mm Y=200mm |
| 连击时激光焊接频率 : | 50HZ | 激光功率 : | 800W |
| 平均功率 : | 500w |

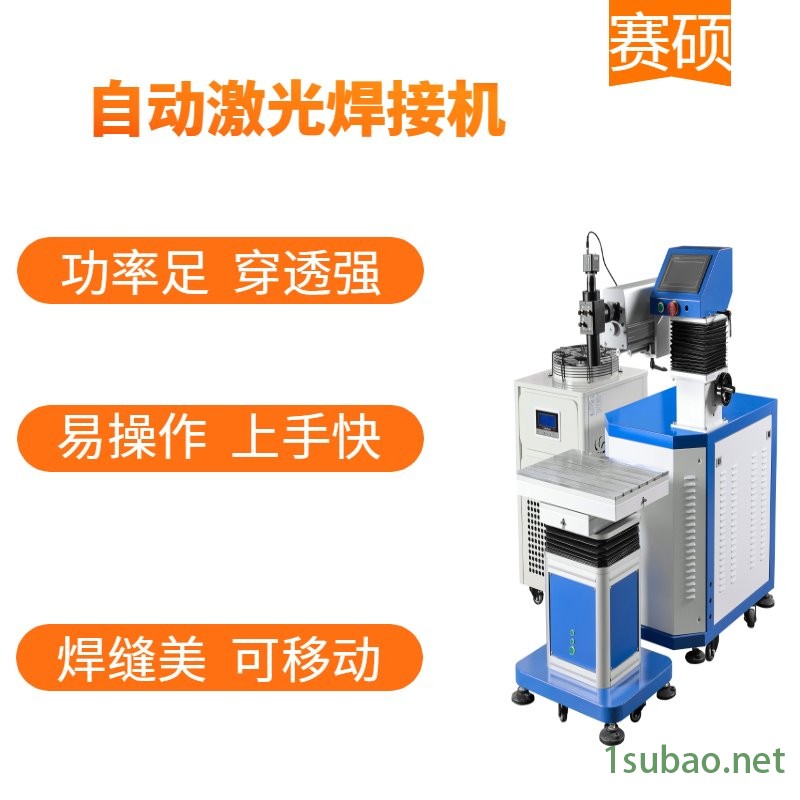

SS-MW Mould laser welding machine
SS-MW模具激光焊接机
Introduction of Repairing Mould Laser Welding Machine for metal Mold Welding
The can effectively handle some repair work of tiny part, such as metal cracks, collapse angle, sand holes and abrasion. It is widely used in the repairing of cylinder, piston, hydraulic rod, guide rod, tile, crankshaft, roller, box, gear, key slot, rotor bearing position, valve and all kinds of large machinery spare parts.
能有效地处理金属裂纹、塌陷角、砂眼、磨损等微小零件的修复工作。广泛应用于气缸、活塞、液压杆、导杆、瓦、曲轴、滚轮、箱体、齿轮、键槽、转子轴承位置、阀门及各种大型机械备件的修复。
Features
1. Ceramic converging cavity made in UK: corrosion resistant and high temperature resistant, with 8-10 years service life. The life of xenon lamp bears more than 8 million times flashing.
2. Most advanced light shielding system can eliminate the irritation to eyes by laser during working.
3. The laser head can rotate for 360°, lift up and down, move left and right, go forward and backward.
4. The parameters are controlled by intelligent remote controller, which is simple and convenient for the operator.
5. The work bench can be lifted, and moved in three dimensions.
6. The size of light spot can be adjusted accordingly and automatically.
1。英国陶瓷聚光腔：耐腐蚀、耐高温，使用寿命8-10年。氙灯寿命超过800万次。
2。 的遮光系统可以消除激光在工作中对眼睛的刺激。
三。激光头可旋转360°，上下升降，左右移动，前后移动。
4。参数由智能遥控器控制，操作简单方便。
5。工作台可以被提升，并在三个维度上移动。
6。光斑大小可以自动调节。
Applications
It can be used in low carbon steel, medium carbon steel and medium carbon alloy steel, high carbon steel and high carbon alloy steel, stainless steel, cast ion, copper and copper alloy, aluminum and aluminum alloy, zinc and zinc alloy, chromium, nickel etc.
应用
可用于低碳钢、中碳钢、中碳合金钢、高碳钢、高碳合金钢、不锈钢、铸钢、铜及铜合金、铝及铝合金、锌及锌合金、铬、镍等。
