| 包装材料 | 纸类 |
|---|---|
| 功率 | 15 |
| 规格 | 1100*800*1420 |
| 生产速度 | 0-30 |
| 适用对象 | 卧式酒盒机 |
| 适用原料 | PE |
| 售后服务 | 保修一年 |
| 适用行业 | 服装,家纺,玩具,**,礼品、工艺品 |
| 包装类型 | 盒 |
| 最大成型面积 | 180*180 |
| 品牌 | 德高机械 |

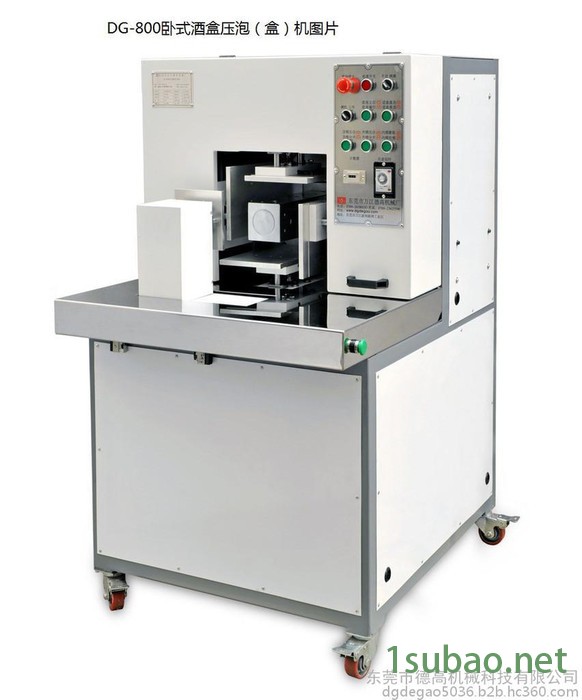

| 型号 | DG-800卧式酒盒机 全自动贴角机 |
| 加工定制 | 否 |
| 最大成型高度 | 325 |
加厚机架与底板，精密加工组装，四面压合八柱导杆，使盒体全面均衡受力。
盒顶压紧座采用直径40硬铬轴为导向，滑动顺畅，位置精准，牢固耐用。

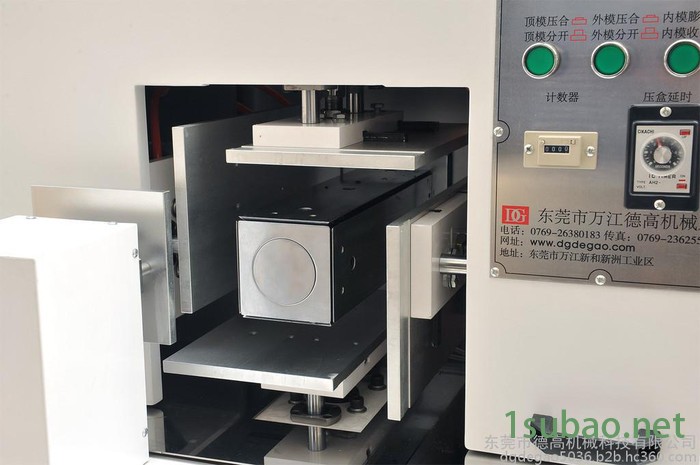

模芯设计为四面同时涨大结构，涨出力量对称，尺寸精准，涨大后内滑条处于台阶平位可以完全承受四面压力，不会让盒体有丝毫变形塌陷，涨大尺寸为单面2.5MM共5MM，方便纸盒的套入与取出，并有自动退盒功能，操作方便快捷。
100MM-180MM宽*200MM-320MM高尺寸以内的酒盒免换外模板，尺寸可调。
控制电路设计有调机、工作、手动、脚踏状态，每组气缸可单独启动，压盒延迟等。
电器、气动元件均选用知名品牌，反应灵敏、性能稳定。
整机粉体金属烤漆，不锈钢台面外形美观。
动作设计连贯合理，生产效率高，是酒盒生产厂家的首选设备。
The machine applies thickening frame and bottomplate and precision machining assembly. Eight-column guide rod is pressed forall sides. So the box can bear balanced stress comprehensively.
Hard chrome shaft with diameter of 40 is adopted forcompressing base of top box so as to achieve smooth sliding, accurate positionand firm and durable property.
The design of mould core applies rising structure offour sides at the same time. Rising strength is symmetrical and the size isaccurate. After rising, internal slider is at a flat position of step. Themachine can bear pressure of four sides completely and it will neither make thebox produce any deformation nor collapse. The rising size is 2.5MM of cartonare convenient. Besides, the machine has automatic returning box function. Theoperation is convenient and fast.
The external formwork of wine box with width of100MM-180MM*height of 200MM-320MM cannot be changed. The size can be adjusted.
The design of control circuit includes debuggingmachine. Working, manual and pedal status. Each group of cylinders can bestarted. Box pressing is delayed.
Electrical apparatus and pneumatic components areall selected from famous brand, so reaction is sensitive and performance isstable.
The whole machine applies powder metal bakingvarnish.
The action design id coherent and reasonable. Theproduction efficiency is high. Thus, the
Machine is the preferred for wine boxmanufacturer.
| 基本参数 | |
| 外形尺寸 | 1100*800*1420mm |
| 机器净重 | 约320KG |
| 电源电压 | 单项-220V |
| 使用气压 | 0.6-0.8Mpa |
| 功率 | 15W |
| 盒周压力 | 260-320kg |
| 盒地压力 | 160-200kg |
| 总排气量 | 0.95㎡/min |
| 最大尺寸 | 180*180*325mm |
