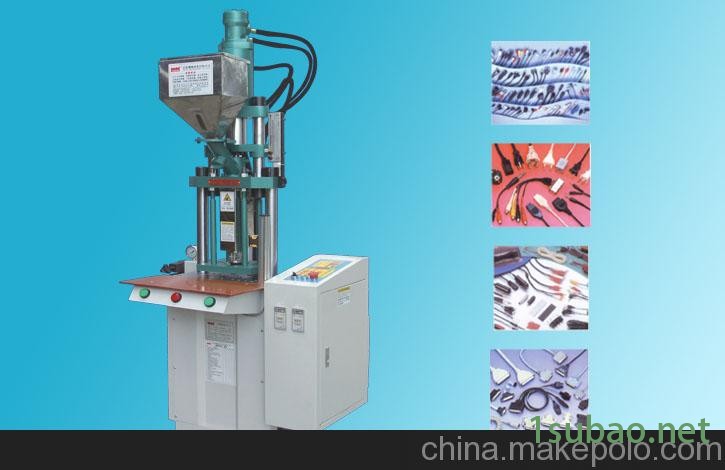

供应亚泰YT-15T-C小型立式注塑机

型号Model

Unit

YT-15T-C

射出系统

螺杆直径Screw Diameter

mm

22

26

射出压力Injection Pressure

kg/cm2

1625

1164

理论射出容量Theorfical Shot Volume

cm3

34

47

射出量(PS)Max.shot Weight(PS)

g/0z

39/1.4

55/1.9

射出率Injection Rate

cm2/see

28

39

螺杆行程Screw stroke

mm

110

螺杆转速Screw Speed Max

rpm

0-215

射嘴接触力Nonzzle Contactforce

tf

-

射嘴行程Nonzzle Retraction Stroke

mm

-

温度控制段数Number of temperature Contorl

2

锁模系统

锁模力Clampieng Force

tf

15

模板尺寸Plateu Size

mm

450*250

模柱间距Disitance Betqeen Tie Bare

mm

280

最小模厚Min.Mold Height

mm

100/40

开模行程Oprening Stroke

mm

190

最大开模距Max.Mold Height

mm

290/230

顶出力量Ejector Stroke

tf

1.3

顶出行程Ejector Strke

mn

35

油压电力系统

最大液压压力Max.Hydaulic Pressure

kg/cm2

140

泵浦叶出量Pump Output

l/min

19

作动油量Oil Resservoir Capacity

l

75

冷却水用量Cooling Water Cousumption

l

400-600

马达电力Pump Motor Power

kw

2.2(3HP)

电热容量Borrl Heating Power

kw

2

总用电量Total Weight

kw

4.2

其它

机器总重Machine Weight

kg

650

机器外型尺寸Machine Dimensious(LsWsH)

m

1.15*0.75*2.15

装箱重量Shipping Weight

kg

800

装箱尺寸Shipping Dimensious(LsWsH)

m

1.4*1.0*2.3
