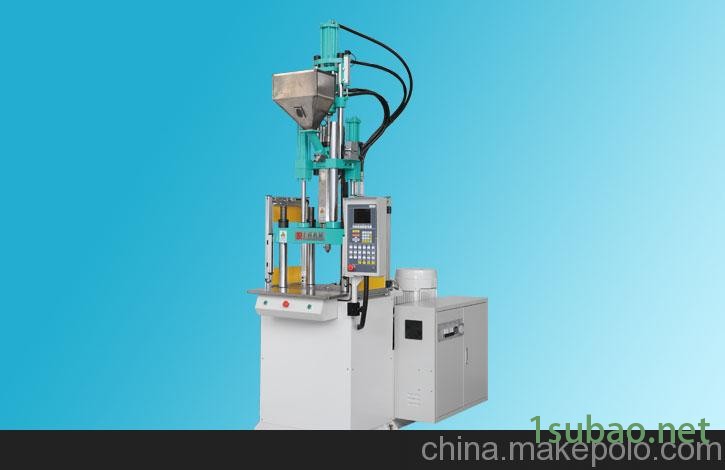

供应亚泰YT-55T-C标准型立式注塑机

型號Model

Unit

YT-55T-C

螺杆直徑Screw Diameter

mm

30

40

射出壓力Injection pressure

kg/cm2

2057

1395

理論射出容量Theorfical Shot Volume

cm3

92

176

射出量(PS)Max.shot Weight(PS)

g/0z

83/2.9

158/5.5

射出率Injection Rate

cm2/see

55

94

螺杆行程Screw stroke

mm

140

螺杆轉速Screw Speed Max

rpm

0-240

射嘴接觸力Nonzzle Contactforce

tf

4.5

射嘴行程Nonzzle Retraction Stroke

mm

210

溫度控制段數Number of temperature Contorl

4

鎖模力Clampieng Force

tf

55

模板尺寸Plateu Size

mm

650*400

模柱間距Disitance Betqeen Tie Bare

mm

480*300

最小模厚Min.Mold Height

mm

180/100

開模行程Oprening Stroke

mm

200

最大開模距Max.Mold Height

mm

300/380

頂出力量Ejector Stroke

tf

1.7

頂出行程Ejector Strke

mn

35

最大液壓壓力Max.Hydaulic Pressure

kg/cm2

140

泵浦葉出量Pump Output

l/min

53

作動油量Oil Resservoir Capacity

l

150

冷却水用量Cooling Water Cousumption

l

800-1000

馬達電力Pump Motor Power

kw

7.5(10HP)

電熱容量Borrl Heating Power

kw

4.5

總用電量Total Weight

kw

12

機器總重Machine Weight

kg

3300

機器外型尺寸Machine Dimensious(LsWsH)

m

2.0*1.2*2.9

裝箱重量Shipping Weight

kg

3600

裝箱尺寸Shipping Dimensious(LsWsH)

m

2.2*1.5*2.5
